“It Fits In A Briefcase”: Horse Powertrain’s C15 Engine Transforms Any Electric Car Into Range Extended Hybrid

The landscape of electric vehicles (EVs) is rapidly evolving with new technologies aimed at enhancing range and efficiency. One such notable advancement is the introduction of the compact C15 engine by Horse Powertrain, a UK-based company. This engine, described as being no larger than a briefcase, is designed to transform battery-electric vehicles into range-extended hybrids. This innovation marks a significant step forward in addressing the range anxiety associated with electric vehicles by integrating a small, efficient generator that extends the vehicle’s driving range without directly powering the wheels.

The Role of the C15 Engine in EVs

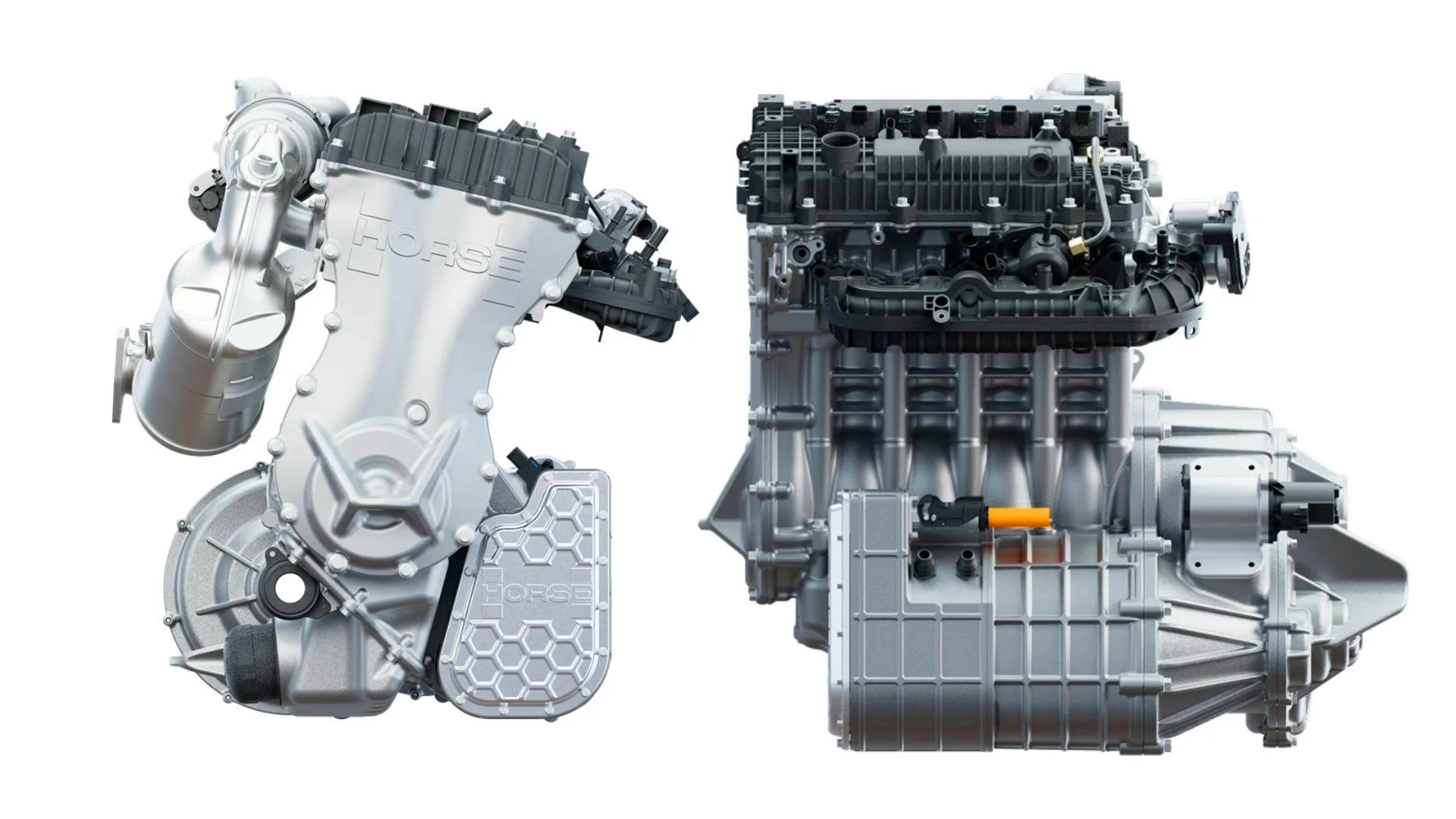

The C15 engine is not a traditional propulsion engine but rather a generator set designed to support the existing battery systems in EVs. Its primary function is to charge the traction battery and maintain its state of charge, thereby extending the vehicle’s range. This is achieved through a steady, efficient rpm that powers an integrated generator. The engine is Euro 7-compliant and offers two variants: a naturally aspirated version delivering up to 70 kW (94 hp) and a turbocharged variant producing 120 kW (161 hp). These specifications aim to cater to a range of vehicle sizes, from smaller B- and C-segment models to larger D-segment cars and commercial vehicles.

Importantly, the C15 engine allows for flexibility in installation, as it can be fitted horizontally or vertically, and positioned at either the front or rear of the vehicle. This adaptability is crucial for converting native battery-electric vehicle (BEV) platforms into range-extended electric vehicles (REEVs) without extensive modifications. The engine’s ability to run on multiple fuel types, including gasoline, ethanol, methanol, and synthetic fuels, further enhances its appeal as a versatile solution for extending the range of electric vehicles.

What to expect from supercar technologies by 2030

A Broader Hybrid Strategy

In addition to the C15 engine, Horse Powertrain is advancing its hybrid technology portfolio with the introduction of its “Future Hybrid System.” This system is a comprehensive hybrid powertrain that replaces a BEV’s front electric drive unit with an integrated engine, transmission, motor, and power electronics. Two configurations are being showcased: the “Performance” variant with a P1 + P3 motor layout and the “Ultra-Compact” P2 layout. Both configurations are built around a 1.5-liter four-cylinder engine and include a dedicated hybrid transmission.

The Future Hybrid System is designed to provide significant space savings, with a potential reduction in front overhang by up to 150 mm compared to conventional hybrid layouts. This compactness allows for the retention of essential front-end components, such as HVAC systems, which might otherwise require more space. The architecture also facilitates the creation of all-wheel-drive REEVs by pairing the front module with a rear P4 motor. According to Ingo Scholten, the system’s compact size makes it possible to fit a full hybrid package into spaces originally designed for electric drive units.

Solar-powered vehicles: are they the next big thing?

Spotlight on IAA Mobility 2025

Horse Powertrain is set to unveil the C15 series at the IAA Mobility 2025 event in Munich. This platform will allow the company to showcase its strategy for hybridization, emphasizing the ease of integrating drop-in range-extender modules like the C15 into existing BEV architectures. The aim is to enable original equipment manufacturers (OEMs) to expand their product offerings with minimal re-engineering, focusing instead on design, software, and full electrification.

As CEO Matias Giannini articulated, the goal is to provide a “frictionless way” for automakers to broaden their line-ups. This strategy aligns with the broader industry trend towards hybrid solutions that balance the benefits of electric power with the practicality of extended range capabilities. By offering a straightforward and cost-effective solution, the C15 and Future Hybrid System are positioned to play a critical role in the transition towards more sustainable automotive technologies.

How technological advances are transforming trucking

Future Implications and Developments

Looking ahead, Horse Powertrain is exploring the development of a three-cylinder variant of its hybrid systems, which could further reduce the compactness of its offerings by an additional 70 mm. The company’s commitment to innovative fuel solutions is evident in the Future Hybrid System’s support for various fuel types, including gasoline, E85 ethanol, M100 methanol, and synthetic fuels. With a target market introduction set for 2027, these advancements underscore Horse Powertrain’s dedication to pushing the boundaries of hybrid technology.

As the automotive industry continues to evolve, the ability to seamlessly integrate hybrid systems into existing electric vehicle platforms could prove pivotal. This approach not only addresses the immediate needs of extending driving range but also supports the long-term goal of reducing the environmental impact of transportation. As these technologies develop, how will they reshape the consumer’s perception of hybrid and electric vehicles?
